【Voltage Compatibility】
When using electrical appliances, please note that they are designed for Japanese voltage specifications (90-110V), so if you use them with a different voltage, it may cause a malfunction.
【Plug Type】
Our products use Japanese plug types (A or B type).
Please use a conversion adapter if necessary.
【Important Note on Transformers and Adapters】
A transformer adjusts voltage to match your device’s requirements.
A conversion adapter only changes the plug shape and does not adjust voltage.
Using only a conversion adapter without a transformer may result in damage to the product.
【Liability】
We are not responsible for malfunctions or damages caused by improper use, such as operating the product without a transformer.
基本性能はYN560-ll同等!
※TTL機能、ハイスピード̋ 7;ンクロフラッシュ非対応
マニュアルでの光量調整 001;照射角度の調整が可能!
Yongnuo RF-602/RF-603無線送信機にサポート!
Before use - Please check that the positive and negative terminals of the battery are correct. ・Please check if the battery has sufficient power. ・It is normal for the strobe flash to start after 6-8 seconds after pressing the switch for 2 seconds.
■Parameters
Model number: Yongnuo YN560III
Line design: Insulated gate bipolar transistor (IGBT)
Guide number: 58 (ISO 100, 105mm)
Flash mode: M, Multi/Slave function: S1, S2, RX
Auto zoom range: 24, 28, 35, 50, 70, 80, 105mm
Vertical rotation angle: -7 to 90 degrees
Left/right rotation angle: 0 to 270 degrees
Power supply: 4 x AA size batteries ﹙Alkaline manganese batteries/nickel-metal hydride rechargeable batteries can be used﹚ Number of flashes: 100 to 1500 times ﹙When using AA alkaline manganese batteries﹚
Recycling time: Approximately 3s﹙When using AA alkaline manganese batteries﹚
Color temperature: 5600k
Flash time: 1/200s~1/20000s
Flash output control: 8-level light intensity control (1/128 to 1/1), 29-level light intensity fine adjustment
Wireless trigger distance: 100m ﹙2.4G wireless﹚, indoor 20-25m, outdoor 10-15m
Other features: zoom strobe head, sound indicator, autosave settings, PC port, power saving mode, thermal protection
Size: Approx. 60 x 188 x 75mm
Weight: Approximately 540g﹙Body only﹚

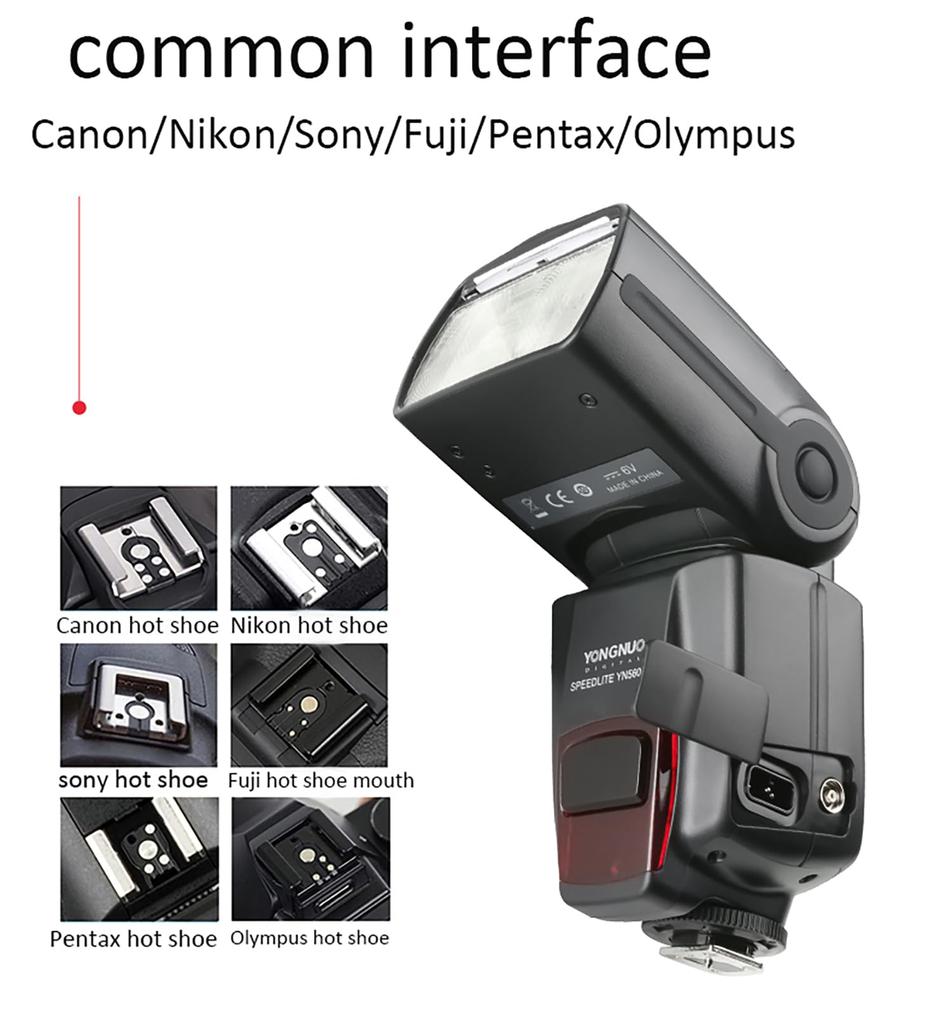

■Compatible models
Cameras compatible with standard hot shoes ﹙For example, Canon, Nikon, Olympus, Pentax, etc.﹚
For Sony cameras: adapter required
■Set contents: YN560III speedlight x 1, protective bag x 1, mini stand x 1, instruction manual (Chinese, English) x 1, original packaging x 1
