【Voltage Compatibility】
When using electrical appliances, please note that they are designed for Japanese voltage specifications (90-110V), so if you use them with a different voltage, it may cause a malfunction.
【Plug Type】
Our products use Japanese plug types (A or B type).
Please use a conversion adapter if necessary.
【Important Note on Transformers and Adapters】
A transformer adjusts voltage to match your device’s requirements.
A conversion adapter only changes the plug shape and does not adjust voltage.
Using only a conversion adapter without a transformer may result in damage to the product.
【Liability】
We are not responsible for malfunctions or damages caused by improper use, such as operating the product without a transformer.

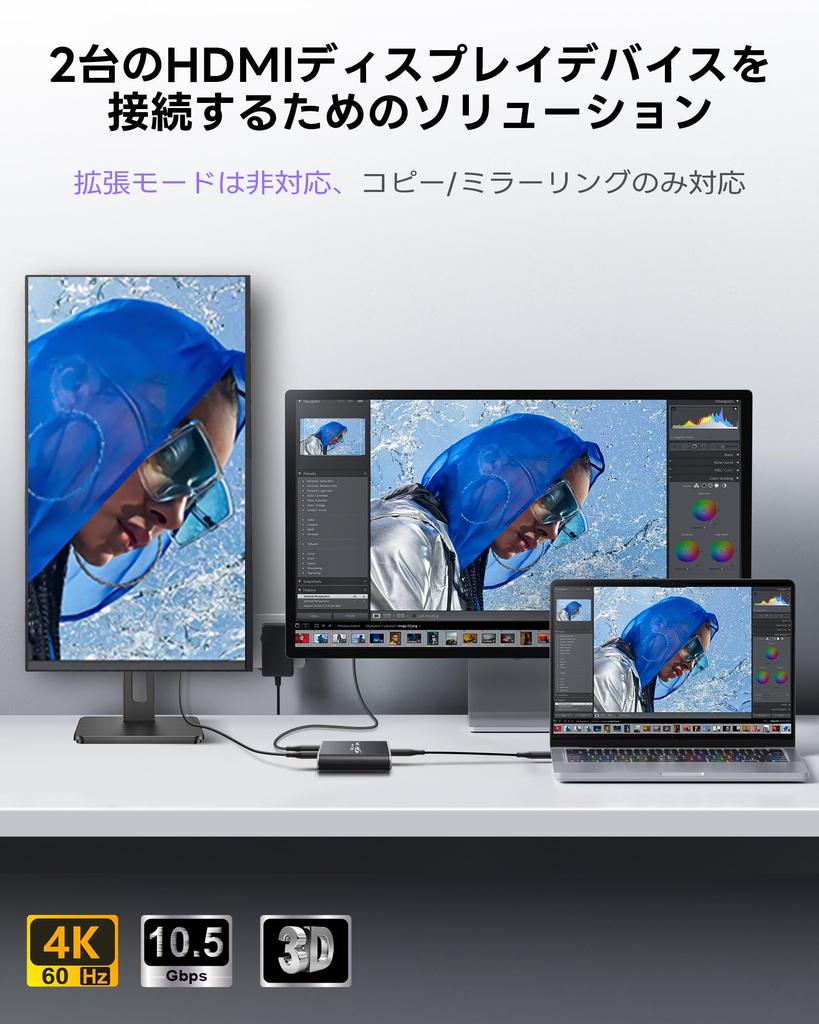

[Two Screens Simultaneous Output] The avedio links HDMI video splitter can output video from one input device to two displays, projectors, or TVs simultaneously. Extended mode is not supported and the same video will be displayed on two devices in mirror mode. Convenient for meetings, events, games, etc. *This product can only display the same image on two displays.
[4K@60Hz High Resolution Support] The HDMI 2.0 splitter supports high resolutions up to 4K@60Hz and achieves the highest image quality when connected to compatible devices. Additionally, it supports 480i, 480p, 576i, 576p, 720p, 1080p, 3D, and Full HD. It supports HDMI 2.0, HDMI 1.4, HDCP 1.4, HDR, 3D, and 18Gbps bandwidth, allowing smooth video transmission with low latency.
[Wide Range of Devices] Compatible with a wide range of HDMI compatible devices including Sky Box, Fire Stick, computers, Xbox 360, Xbox, PS3/PS4/PS4 Pro/PS5, Fire TV Stick, Blu-ray/DVD players, etc. that are equipped with HDMI splitter input terminals. As an output terminal, it is compatible with various devices such as TVs, displays, projectors, and computers. It has a wide range of uses in home entertainment, business, and educational settings.
[Made of aluminum for high-quality transmission] The aluminum alloy outer case provides excellent heat dissipation performance and high stability, achieving stable and high-quality video transmission even during long-term use. No special drivers or applications are required; just connect the monitor distributor's HDMI cable and you can use it immediately. The compact and lightweight design makes it easy to carry and use on business trips and travel destinations. Basically, no power supply is required, but if it does not work, please connect a USB 5V power supply.
[Reliable packaging and full warranty] Package contents: HDMI distribution unit x 1, USB power cable x 1, high-speed HDMI cable x 1, Japanese instruction manual x 1. The product comes with a 1 year quality warranty. If you have any questions, please feel free to contact us. We will try our best to solve your problem.
Avedio Links HDMI Splitter 1 Input 2 Output 4K HDMI Splitter – Outputs 1 HDMI signal to 2 displays simultaneously, no image quality distortion
Product overview
Avedio Links HDMI Splitter is a convenient device that allows you to output one HDMI input signal to two displays, TVs, or projectors simultaneously. This product is suitable for a variety of uses, including home entertainment, gaming, meetings, and presentations. It supports up to 4K resolution and can stably distribute signals without degrading image quality or delay.
Precautions
Supports mirroring mode only
This HDMI splitter only supports mirroring mode and cannot display different content on the two displays. Both displays will show the same image or video.
Note the difference in resolution
If the displays have different resolutions, the output signal will be sent according to the lower resolution. For example, if one display is 720p and the other is 1080p, both displays will receive a signal at 720p resolution, even if the output signal is 1080p.
Product specifications
Maximum resolution: 4K@60Hz
Supported resolutions: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 3D
Power supply: DC 5V
Operating current: 500mA
Output ports: 2x HDMI ports
Compatible devices: PS5, PS4, Xbox, PC, Blu-ray/DVD players, Fire TV, displays, projectors, etc.
Product features and convenience
Avedio Links HDMI splitters can distribute high-quality video to multiple displays, making them ideal for home or office entertainment and presentations. There's no signal loss or delay, so you can enjoy your movie or gaming experience even more. In addition, easy installation and excellent compatibility allow use in a wide range of applications.
Below are some common troubleshooting methods.
If you can't turn on the power
Please check if the power adapter head is inserted correctly into the power socket.
Make sure the power switch is not turned on.
If there is no image
Make sure your TV is turned on and connected to the unit.
Check if the signal source is turned on and properly connected.
Please check the system connection quality.
Check if all lines are good.
Check cable quality
If the image is blurry
Try connecting the cable again to avoid a bad connection.
HDMI cable quality issue.
