4 line type junction box, essential for building a pedal board
High-end model equipped with a buffer in LINE1
Consolidate the input and output of the entire pedal board in one place for neat wiring.
Also compatible with connection to amplifier channel switch
The DIN connector section supports up to 8 pin connectors, including 5 pin MIDI cables.

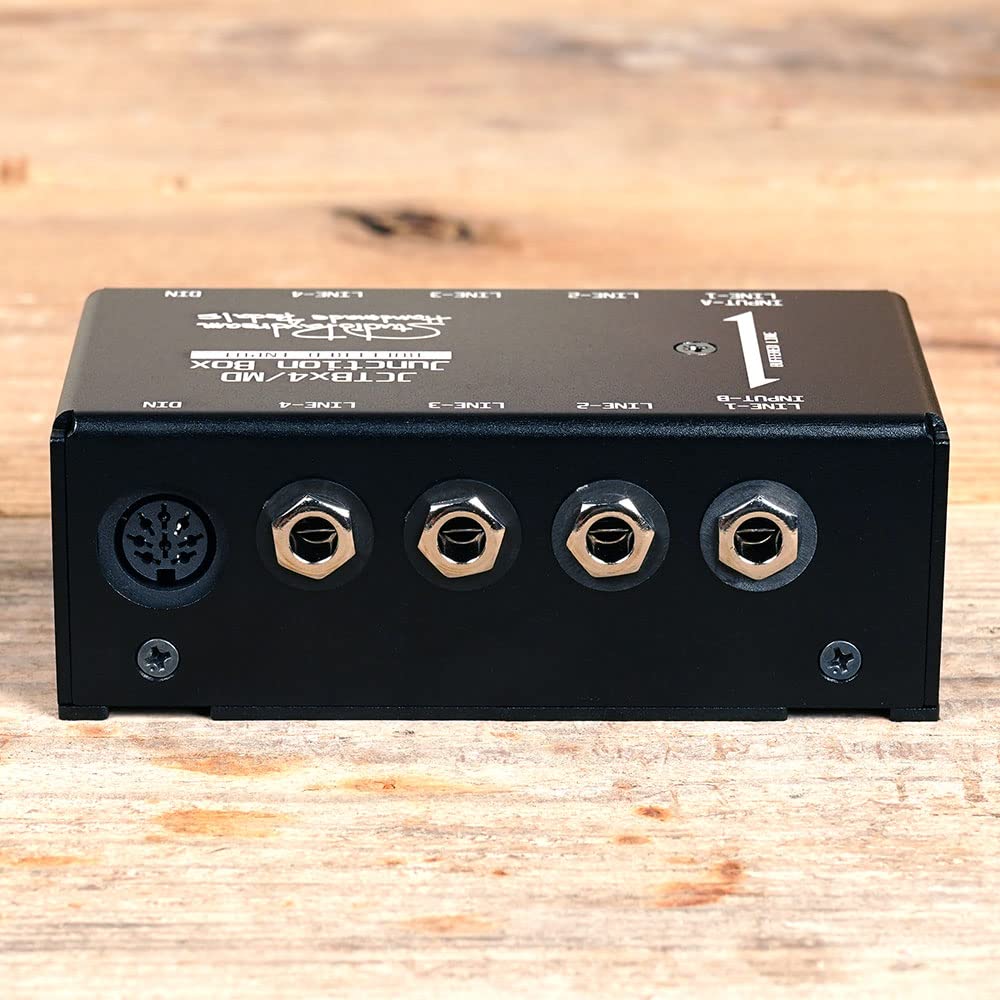

A 4-line + 1-DIN junction box with a buffer, an essential item for building a pedal board. Prepared as a higher-end model of JCTBx4/MD. Adopts a buffer designed to minimize changes in sound quality, making it compatible with both guitar and bass. You can consolidate the input and output of the entire pedal board in one place, making wiring neat and tidy. It is possible to shorten the setup time before the actual production and prevent unexpected troubles. A buffer installed on the input line converts the signal into a signal that is resistant to noise. Ideal for building the entire system after the junction box with true bypass. LINE-1 is a buffered line that supports monaural signals, and LINE2-3 supports both monaural and stereo, and can also be connected to an amplifier's channel switch. In addition, the buffer is turned on by an internal switch when power is supplied, and is automatically bypassed when power is not supplied, allowing LINE-1 to also function as a passive line. When the buffer is on, there are restrictions on the connection direction for LINE-1 (INPUT-A, INPUT-B) because it passes through the active circuit.
One of them is the input of the buffer, and the other is the output), but by having a function to switch the direction of signal flow with a slide switch on the side of the case, it is possible to create a free layout without being restricted by the installation position or direction on the board. ■Specifications overview ・LINE1: ¼ inch phone jack (monaural) Buffer is on when power is supplied (STATUS LED lights up), buffer is bypassed when power is not supplied ・LINE2 to 4: ¼ inch phone jack (compatible with both monaural/stereo) ・DIN jack: 3PIN/5PIN(MIDI)/7PIN/8PIN *Compatible with those with pins arranged in a 45 degree arrangement on concentric circles ・Power supply : 9vDC, center negative (current consumption: approx. 32mA) ・Body size: Width approx. 124mm x Height approx. 72mm x Height approx. 44mm *Including protrusions such as jacks and switches
