【Voltage Compatibility】
When using electrical appliances, please note that they are designed for Japanese voltage specifications (90-110V), so if you use them with a different voltage, it may cause a malfunction.
【Plug Type】
Our products use Japanese plug types (A or B type).
Please use a conversion adapter if necessary.
【Important Note on Transformers and Adapters】
A transformer adjusts voltage to match your device’s requirements.
A conversion adapter only changes the plug shape and does not adjust voltage.
Using only a conversion adapter without a transformer may result in damage to the product.
【Liability】
We are not responsible for malfunctions or damages caused by improper use, such as operating the product without a transformer.
----------------------------------------------------------------------
SWD-UA1 = DAC IC uses ESS Technology's "ES9016K2M". Supports PCM 44.1k to 384kHz and DSD 2.8M to 11.2MHz sound source playback. You can play various digital sound sources in high quality, including high-resolution sound sources.
SWD-UA1 = This unit uses a 1-bit digital amplifier, and is characterized by delicate, clear, high-speed, and realistic sound quality. It supports both headphones and speakers as an output destination, so you can enjoy music according to your room environment and situation.
SWD-UA1=With the high resolution and multi-function (network) TV, you can now easily enjoy YouTube and online live shows on a large screen. On the other hand, some people may feel that the sound quality of the TV's built-in speakers is unsatisfactory. Therefore, by connecting the optical output terminal of the TV to the optical input terminal of this unit and combining it with your favorite speakers, you can easily improve the sound quality of the audio output from the TV! Enjoy videos and live viewing on a large screen with realistic sound.
SW-SP2 = Compact yet plays a wide range from low to high frequencies in a well-balanced manner = Although this unit is a small cube-shaped speaker box of about 12 cm, it is built as a speaker that plays a wide range from low to high frequencies in a well-balanced manner. It is rare. The compact size allows it to be installed even in limited spaces, and it provides a rich, balanced sound space. Generally speaking, when it comes to small speakers, the sound tends to be small, and the bass sound in particular is often unsatisfactory, but the "SW-SP2" has a sound field that extends far beyond the size of the speaker itself, and a sound with a sense of openness. Enjoy!
SW-SP2 = Equipped with a passive radiator, you can enjoy powerful music while focusing on sound quality = One full-range speaker unit per unit, with passive radiators on both sides. By pursuing clear mid-high range and moderate low range reproduction, we have made it possible to create a well-balanced and rich sound space.

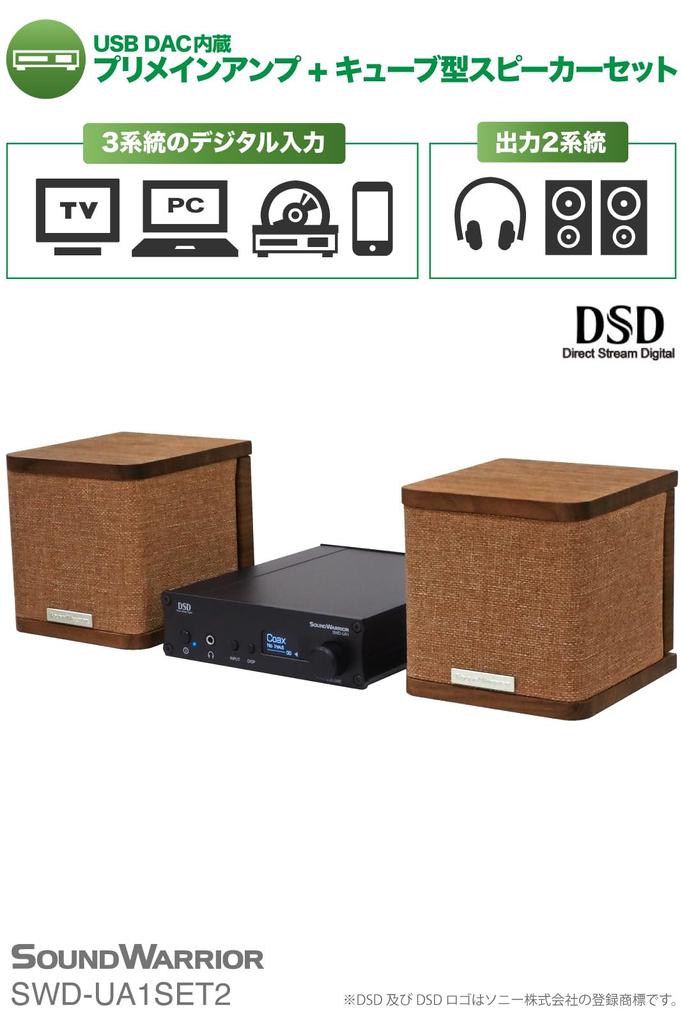

The SWD-UA1SET2-SD is a state-of-the-art all-in-one digital amplifier that allows you to easily enjoy authentic sound from various digital sound sources such as high-resolution sound sources, music streaming services, and online live performances, and is the perfect size for desktop audio. This is a set of cube-shaped speakers made in Japan, created with the pursuit of design.
[Product specifications] ■SWD-UA1-SD Body size: approx. W146mm x H40mm x D165mm (excluding protrusions) Weight: approx. 0.7kg Accessories: AC adapter x 1, remote control x 1, rubber feet x 4, instruction manual ×1, warranty card ×1 SWD-UA1SET2-SD exclusive accessories: USB cable (Type C-B) Warranty period: 1 year after purchase *Accessories for SWD-UA1SET2-SD are not covered by the 1 year product warranty. Please note that we will only replace items that are initially defective. Country of manufacture: Japan
Digital input: [Terminal] USB Type B (USB), RCA pin jack (COAXIAL), square optical connector/TOS-Link (OPTICAL) [Signal standard] USB2.0 (USB), S/PDIF (COAXIAL, OPTICAL) [PCM sampling frequency] USB=44.1k/48k/88.2k/96k/176.4k/192k/352.8k/384kHz COAXIAL, OPTICAL=44.1k/48k/88.2k/96k/176.4k/192kHz [Quantization bit number] USB=16/24/32bit COAXIAL, OPTICAL=16/24bit [DSD sampling frequency] 2.8224M/5.6448M/11.2896 MHz (only USB input supported) SPEAKER output: [SPEAKER terminal] 4mm banana plug compatible speaker terminal [Maximum output] 11W + 11W (1 kHz, 1%, 8Ω) [Suitable speaker impedance] 4Ω to 8Ω PC SPEAKER output: [PC SPEAKER terminal] Φ3.5 mm mini jack [ Maximum output]+11.0 dBm(2.7Vrms)
Phone output: [PHONES terminal] Φ3.5 mm mini jack [Maximum output] 60mW (1 kHz, 1%, 40Ω) [Power supply voltage] DC 12V to 15V [Power consumption] Max. 35W, standby 0.05W
■SW-SP2 Body size: Approx. W112 x H114 x D123mm/unit (maximum external size) Body weight: Approx. 585g/unit Format: 1-way + passive radiator type Units used: -Full range speaker 80mm 1 piece/unit -Passive radiator 74mm 2 pieces/unit Frequency characteristics: 85Hz to 20kHz Input impedance: 8Ω Output sound pressure level: 83dB/1m1W Rated input: 10W Maximum input: 15W Accessories: Speaker cord (1m x 2), cushion pad (8 pieces), instruction manual, warranty Warranty period: 1 year *Purchase date Please keep the delivery note and receipt with the date of delivery in a safe place along with the warranty card.
